KEY FEATURES

• Comprehensive tri-band coverage across 2.4GHz, 5GHz, and 6GHz to deliver up to 7.8Gbps combined peak datarate
• 4x4 MIMO radios to deliver peak performance and increased capacity using MU-MIMO and OFDMA (uplink and downlink for both)
• Up to seven 160MHz channels in 6GHz support low-latency, bandwidth-hungry applications like high‑definition video and augmented reality/virtual
reality applications
• Unique ultra tri-band filtering enables 5GHz and 6GHz to operate without restrictions or interference
• High availability with configurable 5 Gbps dual Ethernet ports for hitless failover of ethernet and power
• Built in GPS receivers and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements.
ANTENNA PATTERNS AP-650
Horizontal planes (top view)
Showing azimuth (0 degrees) and 30 degrees downtilt patterns (averaged patterns for all applicable antennas).

ANTENNA PATTERNS AP-650
Vertical (elevation) planes (side view, AP facing down) Showing side view with AP rotated 0 and 90 degrees (averaged patterns for all applicable antennas).





SPECIFICATIONS
Hardware variants
• AP-655: Internal antenna models.
Wi-Fi radio specifications
• AP type: Indoor, tri-radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 4x4 MIMO.
• 2.4GHz radio: Four spatial streams MIMO for up to 1,147Mbps wireless data rate with HE40 802.11ax client devices (574Mbps for HE20).
5GHz radio: Four spatial streams MIMO for up to 2.4Gbps wireless data rate with HE80 802.11ax client devices
6GHz radio: Four spatial streams MIMO for up to 4.8Gbps wireless data rate with HE160 802.11ax client devices
Both downlink and uplink MU-MIMO in 6GHz and 5GHz, downlink only in 2.4GHz
Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio (limited to 4 for the 6GHz radio)
Supported frequency bands (country-specific restrictions apply):

• 2.400 to 2.4835GHz ISM
• 5.150 to 5.250GHz U-NII-1
• 5.250 to 5.350GHz U-NII-2A
• 5.470 to 5.725GHz U-NII-2C
• 5.725 to 5.850GHz U-NII-3/ISM
• 5.850 to 5.895GHz U-NII-4
• 5.925 to 6.425GHz U-NII-5
• 6.425 to 6.525GHz U-NII-6
• 6.525 to 6.875GHz U-NII-7
• 6.875 to 7.125GHz U-NII-8

Available bands and channels: Dependent on configured regulatory domain (country)
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5GHz band
Including Zero-Wait DFS (ZWDFS) to accelerate channel changes.
Transmit power: Configurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
Per radio/band (2.4GHz / 5GHz / 6GHz): +24 dBm (18dBm per chain)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.
Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks
Ultra Tri-Band (UTB) enables ultimate flexibility in 5GHz and 6GHz channel selection without performance degradation
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range.
Wi-Fi antennas
AP-655: Integrated downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.6dBi in 2.4GHz, 5.2dBi in 5GHz and 5.4dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.

• Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 3.6dBi in 2.4GHz, 3.1dBi in 5GHz and 3.7dBi in 6GHz.

Power sources and power consumption
The AP supports various power modes depending on the available power source(s) and configuration

• With IPM disabled, the AP may apply some static restrictions, see tables below
• With IPM enabled, the AP will start up in unrestricted mode but may dynamically apply restrictions depending on the available power budget and actual consumption. The feature restrictions and order in which these get applied are configurable
• When powered by direct DC power, the AP operates without restrictions
• Powering the AP from a single 802.3af (class 3 or lower) POE source is not supported (except for AP staging), regardless of IPM status

Maximum (worst-case) power consumption (without / with a USB device attached):

• DC powered: 36.0W / 42.5W
• POE powered: 40.3W / 46.5W
• This assumes that up to 5W is supplied to the attached USB device

Maximum (worst-case) power consumption in idle mode: 14.3W/20.2W (DC) or 16.9W/22.7W (POE)
Maximum (worst-case) power consumption in deep-sleep mode: 2.4W (DC) or 4.0W (POE)
Mounting details

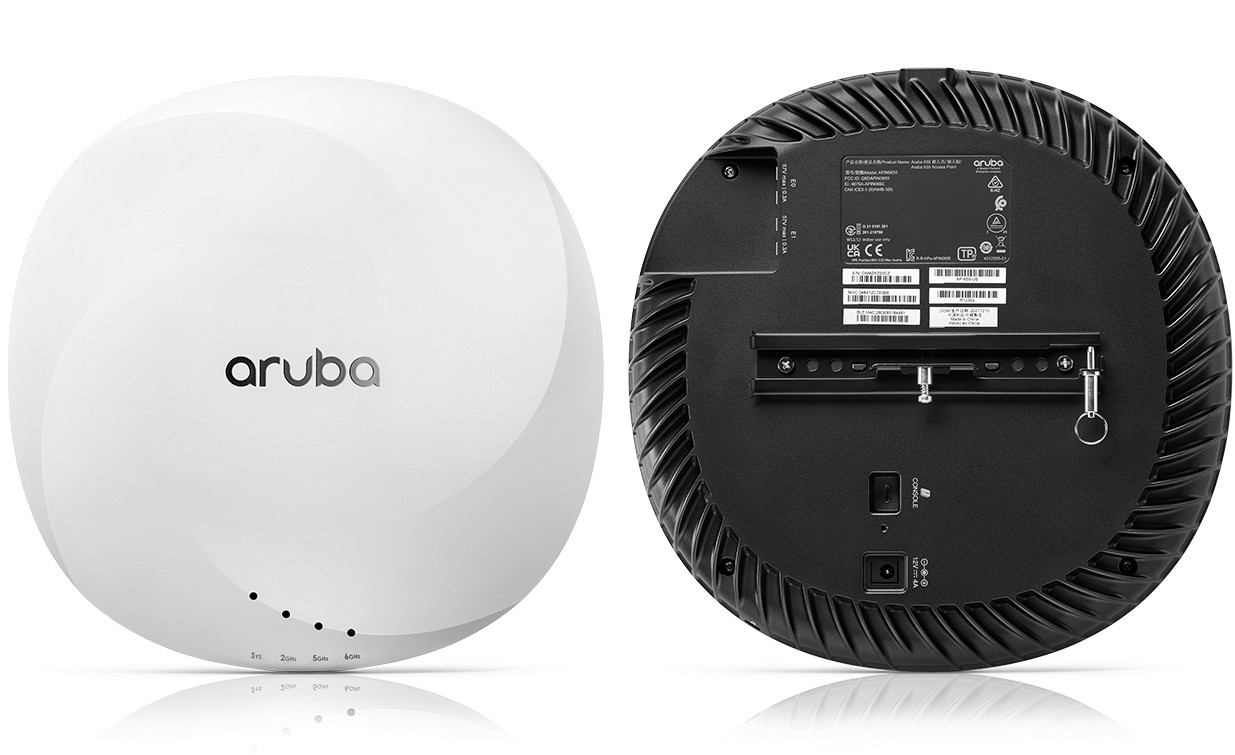

A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 650 Series Ordering Guide for details.
Mechanical specifications
Dimensions/weight (AP-655; unit without mount bracket):
260mm (W) x 260mm (D) x 60mm (H)
1,800g
Dimensions/weight (AP-655; shipping):
285mm (W) x 285mm (D) x 95mm (H)
2,300g
Reliability
Mean Time Between Failure (MTBF): 544khrs (62yrs) at +25°C operating temperature.
Certifications
UL2043 plenum rating
Wi-Fi Alliance (WFA):
Wi-Fi CERTIFIED a, b, g, n, ac
Wi-Fi CERTIFIED 6E (ax, 6GHz)
WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, W-Fi Agile Multiband
Wi-Fi Location*
Passpoint (release 2)
Bluetooth SIG
Ethernet Alliance (POE, PD device, class 6)
*Targeting Q2 CY22 to obtain the Wi-Fi Location certification
Warranty
Aruba’s hardware limited lifetime warranty.
