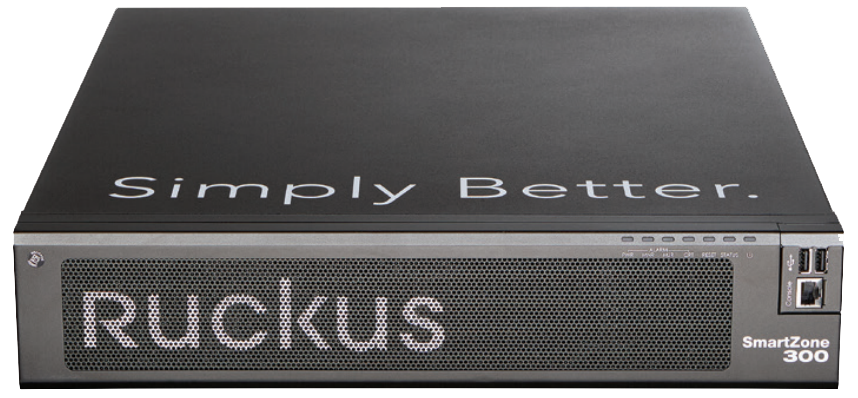

SmartZone 300 Scalable Wireless LAN Controller
-
The SmartZone™ 300 (SZ300) represents a new class of scalable and versatile WLAN controllers designed for data
center deployment. Powered by the SmartZone OS, it addresses the large-scale distributed network challenges
faced by service providers of all types, as well as those of large enterprises and institutions.
The SmartZone™ 300 (SZ300) represents a new class of scalable and versatile WLAN controllers designed for data center deployment. Powered by the SmartZone OS, it addresses the large-scale distributed network challenges faced by service providers of all types, as well as those of large enterprises and institutions.
MULTI-SERVICE AND MOBILE NETWORK OPERATORS

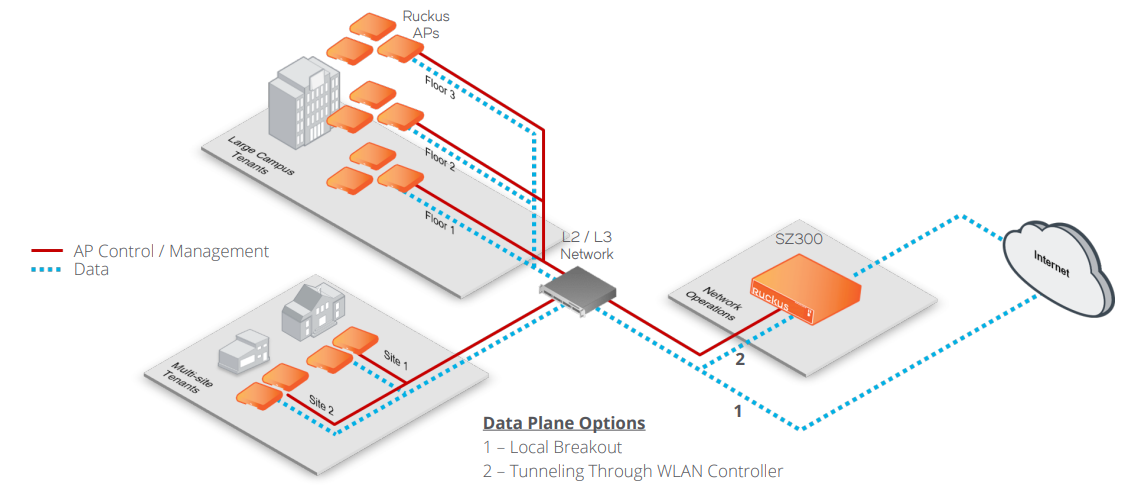

Operator deployment scenarios are among the most complex in the world, with some operators simultaneously delivering public access Wi-Fi, employee Wi-Fi and Wi-Fi as a managed service to their enterprise and small business customers. The SZ300 allows operators to address these scenarios collectively or independently while working within the unique constraints of the operator’s public and private networks.
INTERNET SERVICE PROVIDERS
As Wi-Fi moves through the technology adoption lifecycle, internet service providers are changing how this infrastructure has traditionally been delivered to end-customers. By capitalizing on the Wi-Fi-as-a-Service trend, service providers are creating new revenue streams while simultaneously solving customer’s problems with managing an increasingly complex network component. The multi-tenant-capable SZ300 enables these service providers to implement sophisticated, multi-tier business and operational models, even across geographic and commercial boundaries.
LARGE CAMPUS ORGANIZATIONS
End-user quality-of-service expectations are on the rise. Capital equipment budgets are not. The SZ300 provides IT departments with intuitive, visual tools to manage end-user experience, proactively and reactively. Its active/active redundancy architecture provides the budget flexibility that comes from having no idle capacity.
MULTI-SERVICE AND MOBILE NETWORK OPERATORS
Operator deployment scenarios are among the most complex in the world, with some operators simultaneously delivering public access Wi-Fi, employee Wi-Fi and Wi-Fi as a managed service to their enterprise and small business customers. The SZ300 allows operators to address these scenarios collectively or independently while working within the unique constraints of the operator’s public and private networks.
INTERNET SERVICE PROVIDERS
As Wi-Fi moves through the technology adoption lifecycle, internet service providers are changing how this infrastructure has traditionally been delivered to end-customers. By capitalizing on the Wi-Fi-as-a-Service trend, service providers are creating new revenue streams while simultaneously solving customer’s problems with managing an increasingly complex network component. The multi-tenant-capable SZ300 enables these service providers to implement sophisticated, multi-tier business and operational models, even across geographic and commercial boundaries.
LARGE CAMPUS ORGANIZATIONS
End-user quality-of-service expectations are on the rise. Capital equipment budgets are not. The SZ300 provides IT departments with intuitive, visual tools to manage end-user experience, proactively and reactively. Its active/active redundancy architecture provides the budget flexibility that comes from having no idle capacity.
UNMATCHED SCALE

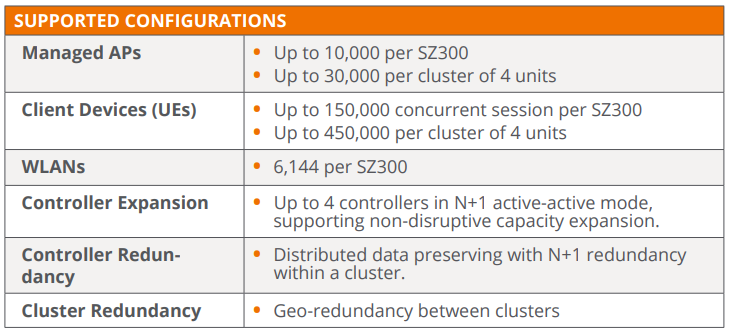

A single SZ300 appliance can manage 10K APs, 150K clients and up to 20 Gbps of throughput, while 3+1 active clustering increases capacity to 30K APs, 450K clients and up to 60 Gbps of aggregate throughput.
ULTRA-HIGH AVAILABILITY

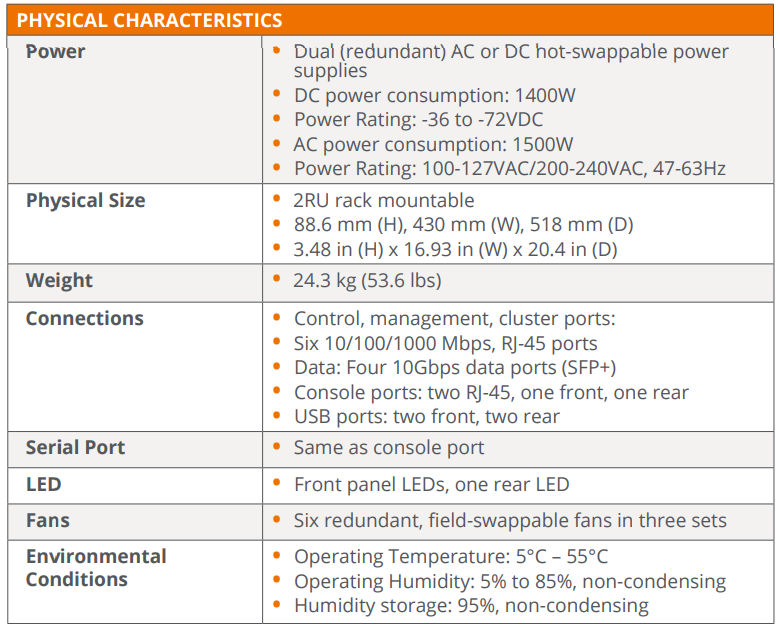

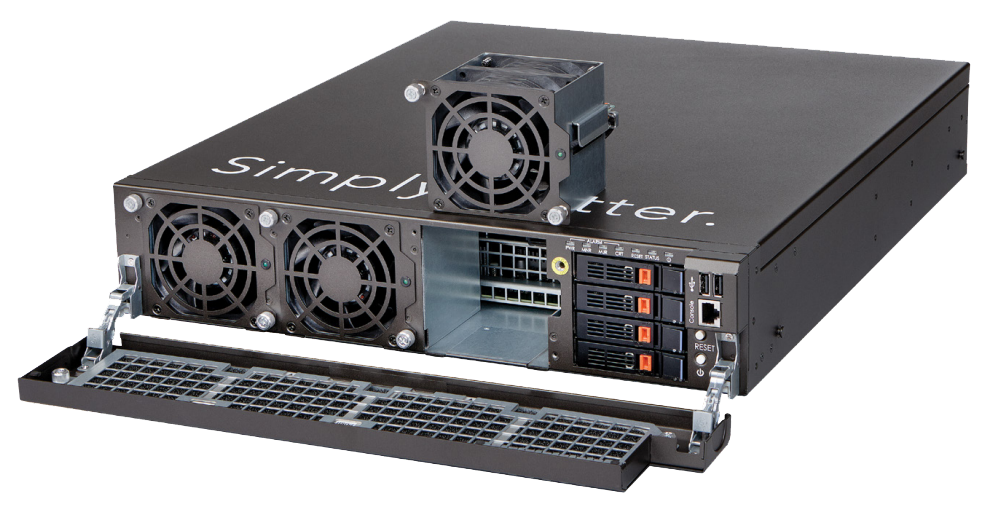

SmartZone protects from catastrophic failures with intra-cluster, and inter-cluster failover. Georedundancy with active/active clusters deliver higher availability versus traditional hot-standby. Hot-swappable power supplies, 3x fan sets and redundant disk drives further improve uptime.
MULTI-TIER MANAGED SERVICES
Multi-tenancy, domain segmentation and containerization enable secure delivery of managed WLAN services in complex, multi-tier business model and multi-geo contexts, including MVNO.
COMPREHENSIVE EXPERIENCE MANAGEMENT
Visual Connection Diagnostics speeds and simplifies troubleshooting and client problem resolution while unique “super-KPIs” enable IT to more quickly detect and react to potential user experience degradation.
CONTENT FILTERING
Easily create and enforce content polices to protect users from accessing inappropriate websites using URL Filtering.
MULTI-VARIATE, ROLE-BASED POLICIES
Optional Ruckus Cloudpath integration lets IT to create rich location-, device- and user-based policy rules, enabling network segmentation based on real security and policy needs rather than on a one-size-fits-all approach.
HIGH-FIDELITY STREAMING DATA
For organizations using their own network analytics tools, SmartZone supplies a streaming feed of KPIs, enabling IT to effectively respond in the event of rapidly deteriorating network conditions, without requiring firewall pinholes.
ADDITIONAL ADVANCED FEATURES
Rogue AP detection, interference detection and mitigation, band steering, airtime fairness, hotspot, guest networking services and more.
A single SZ300 appliance can manage 10K APs, 150K clients and up to 20 Gbps of throughput, while 3+1 active clustering increases capacity to 30K APs, 450K clients and up to 60 Gbps of aggregate throughput.
ULTRA-HIGH AVAILABILITY
SmartZone protects from catastrophic failures with intra-cluster, and inter-cluster failover. Georedundancy with active/active clusters deliver higher availability versus traditional hot-standby. Hot-swappable power supplies, 3x fan sets and redundant disk drives further improve uptime.
MULTI-TIER MANAGED SERVICES
Multi-tenancy, domain segmentation and containerization enable secure delivery of managed WLAN services in complex, multi-tier business model and multi-geo contexts, including MVNO.
COMPREHENSIVE EXPERIENCE MANAGEMENT
Visual Connection Diagnostics speeds and simplifies troubleshooting and client problem resolution while unique “super-KPIs” enable IT to more quickly detect and react to potential user experience degradation.
CONTENT FILTERING
Easily create and enforce content polices to protect users from accessing inappropriate websites using URL Filtering.
MULTI-VARIATE, ROLE-BASED POLICIES
Optional Ruckus Cloudpath integration lets IT to create rich location-, device- and user-based policy rules, enabling network segmentation based on real security and policy needs rather than on a one-size-fits-all approach.
HIGH-FIDELITY STREAMING DATA
For organizations using their own network analytics tools, SmartZone supplies a streaming feed of KPIs, enabling IT to effectively respond in the event of rapidly deteriorating network conditions, without requiring firewall pinholes.
ADDITIONAL ADVANCED FEATURES
Rogue AP detection, interference detection and mitigation, band steering, airtime fairness, hotspot, guest networking services and more.
MANAGEMENT / OA&M
MULTI-TIER ADMINISTRATIVE HIERARCHY
A multi-tier administrative hierarchy provides more flexibility for service providers, allowing administrators to create and reuse configuration profiles within domains and zones. Role-based access control (RBAC) with pre-grouped administration permissions makes common roles easier to setup. Define read-only or modify permissions that apply across zones, and easily add new administrator profiles and set permissions that apply across tenants.
PARTNER DOMAIN LAYER
The Partner Domain Layer enables operators to separate tenants with their own unique set of configurations, profiles, and system objects that are not shared with other tenants. This creates a wall between tenants to ensure privacy and alleviate operational headaches associated with tenant management.

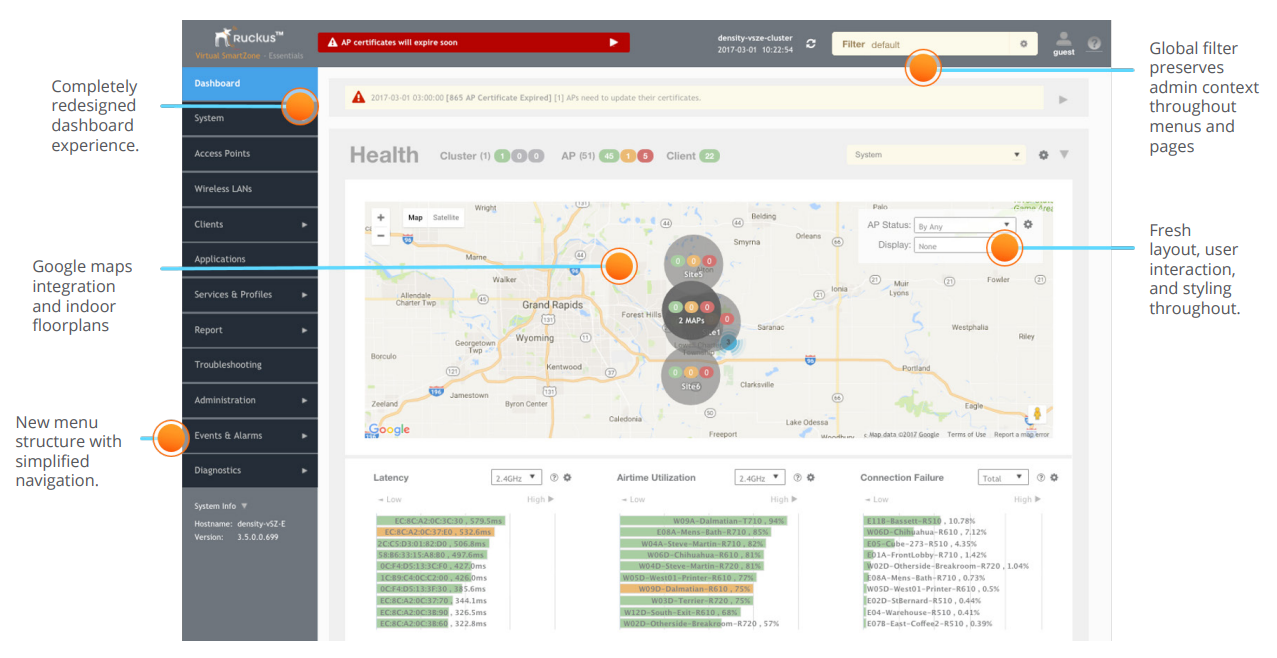

ADMINISTRATIVE DASHBOARD
The Dashboard is a customizable and contextually rich interface that reduces the time required to support large-scale networks. Consistent menus and consolidated and streamlined navigation shortens time to perform routine tasks such as AP configuration or monitoring actions. Configurable visual filter settings for the Dashboard personalize visual network alerts and WLAN statistics; settings are preserved throughout sub-pages. View maps, health and traffic analysis, spectrum analysis, and more.
