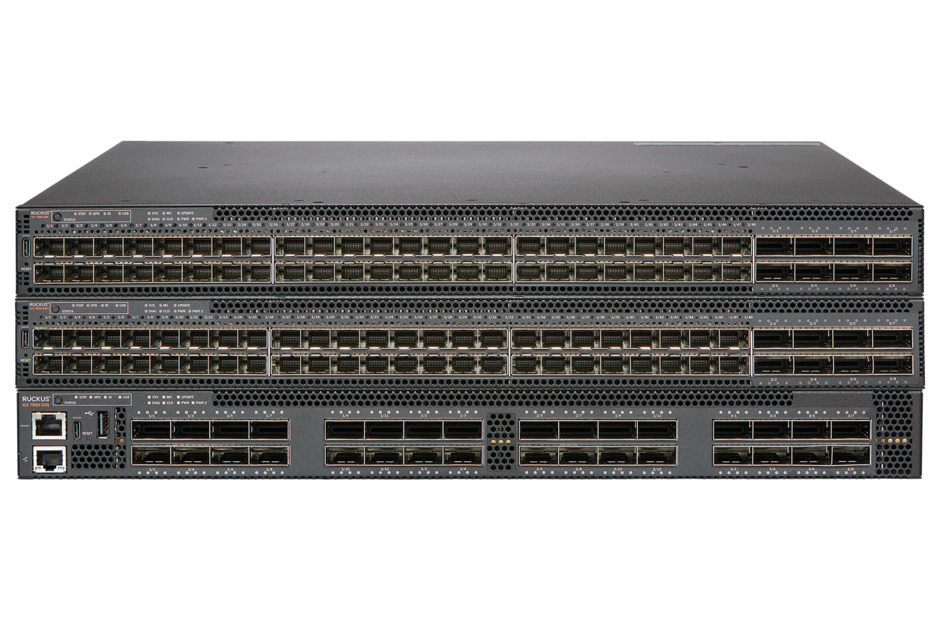

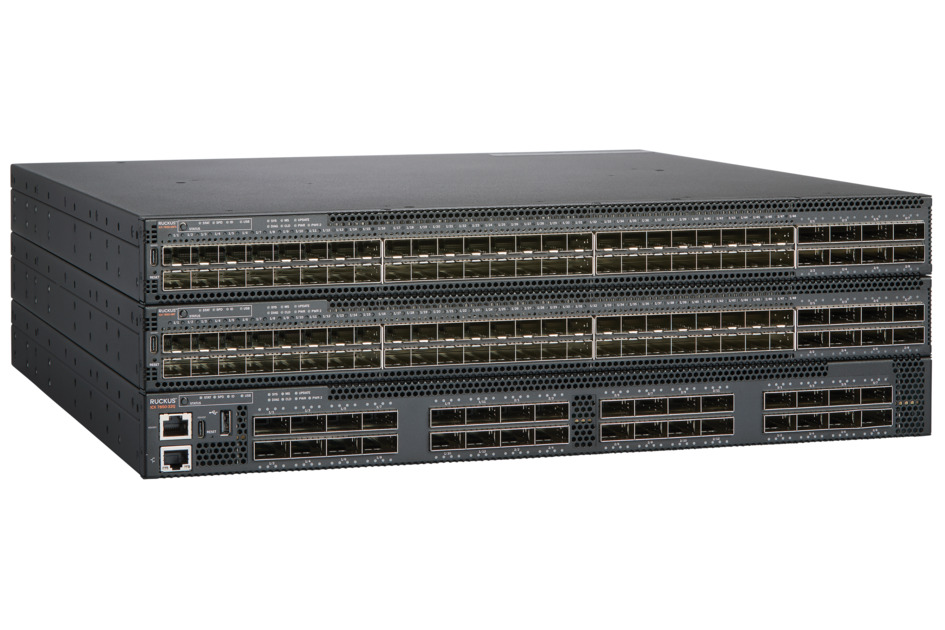

RUCKUS ICX 7850 Enterprise aggregation/core stackable switch
-
New user demands and technology advances are increasingly putting pressure on campus networks requiring them to scale to support more devices and deliver more bandwidth. The rapid growth in wireless traffic, accelerated by the adoption of 802.11ac and 802.11ax Wi-Fi, is propelling the migration from 1GbE to Multigigabit at the access and, driving the need for faster networks at the aggregation and core. Workgroups and data center servers are migrating from 1GbE connectivity to 10GbE Copper or 25GbE Fiber with 100GbE uplinks to keep up with application demands.
RUCKUS ICX 7850 Switches Features
Kicking-off the next stage in the fixed form factor revolution:
Superior Scalability: Up 76.8 Tbps of combined switching capacity and 384x 100GbE or 576x 10/25 GbE ports per 12 units’ stack supports the most demanding enterprise environments.
Maximum Flexibility: Network Core connectivity and switching capacity can be distributed wherever it is needed. Does not need to be co-located in a single wiring closet like a traditional chassis.
Advanced Security: 256 bit MACsec delivers maximum data privacy
Pay as you grow: Cost effective deployment model of fixed form factor switches at the network core
* Industry-leading 40/100 Gbps Ethernet port density and flexibility
* Up to 32x100 GbE or 128x25 GbE ports per unit
* Up to 9.6 Tbps of aggregated stacking bandwidth
* Stacks up to 12 units with up to 10km between stacked switches
* 8 full-duplex 100 Gbps stacking ports per switch
* Software updates without downtime with In-Service Software Upgrades (ISSU)
* Instantaneous hitless failover
* Redundant power supplies with hot-swappable, and load-sharing capabilities
* Flexible distributed chassis stacking architecture
* Start small and add capacity via stacking as needs grow
* 1U form factor saves rack space and power in wiring closets
* Works seamlessly with RUCKUS Wi-Fi access points
* RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management
Kicking-off the next stage in the fixed form factor revolution:
Superior Scalability: Up 76.8 Tbps of combined switching capacity and 384x 100GbE or 576x 10/25 GbE ports per 12 units’ stack supports the most demanding enterprise environments.
Maximum Flexibility: Network Core connectivity and switching capacity can be distributed wherever it is needed. Does not need to be co-located in a single wiring closet like a traditional chassis.
Advanced Security: 256 bit MACsec delivers maximum data privacy
Pay as you grow: Cost effective deployment model of fixed form factor switches at the network core
* Industry-leading 40/100 Gbps Ethernet port density and flexibility
* Up to 32x100 GbE or 128x25 GbE ports per unit
* Up to 9.6 Tbps of aggregated stacking bandwidth
* Stacks up to 12 units with up to 10km between stacked switches
* 8 full-duplex 100 Gbps stacking ports per switch
* Software updates without downtime with In-Service Software Upgrades (ISSU)
* Instantaneous hitless failover
* Redundant power supplies with hot-swappable, and load-sharing capabilities
* Flexible distributed chassis stacking architecture
* Start small and add capacity via stacking as needs grow
* 1U form factor saves rack space and power in wiring closets
* Works seamlessly with RUCKUS Wi-Fi access points
* RUCKUS SmartZone and RUCKUS Cloud support delivers unified wired & wireless management
Premium core/aggregation switching
· Network core layer can be distributed across the campus, deploying ports and switching capacity where they are needed.
· The performance, scalability, and availability of a high-end enterprise-class chassis.
· The deployment flexibility of fixed form factor switches
40GbE and 100GbE for maximum performance
· Up to 32x 40/100 GbE ports per switch.
· Up to 8x 100 GbE stacking ports, 1.6 Tbps of stacking bandwidth per switch.
· Deliver the performance and scalability required by future generations of wireless access points, IoT and LTE devices.
Highly resilient core switching
· Redundant, hot-swappable power supplies and fans
· In-Service Software Upgrades (ISSU)
· Multi-Chassis Trunking (MCT) for core failover with load-balancing
· Hitless stack insertion and removal
Market-leading stacking scalability
· Up to 12 switches per stack
· Up to 10 km using standard optics or cables
· Up to 8x 40/100GbE standard QSFP28 stacking ports
Advanced L3 routing delivers design flexibility
· IPv4 and IPv6
· BGP, OSPF, VRRP, PIM, PBR, VRF
Data center leaf/spine deployment with 25 & 100 GbE
· Up to 48x 10/25GbE port per leaf switch for server connectivity
· Up to 48x 10GBASE-T copper ports per leaf switch for server connectivity
· Up to 32x 40/100 GbE ports per spine switch
Security and data privacy
· MACsec 128-bit and 256-bit data encryption ensures compliance and data confidentiality
· Network core layer can be distributed across the campus, deploying ports and switching capacity where they are needed.
· The performance, scalability, and availability of a high-end enterprise-class chassis.
· The deployment flexibility of fixed form factor switches
40GbE and 100GbE for maximum performance
· Up to 32x 40/100 GbE ports per switch.
· Up to 8x 100 GbE stacking ports, 1.6 Tbps of stacking bandwidth per switch.
· Deliver the performance and scalability required by future generations of wireless access points, IoT and LTE devices.
Highly resilient core switching
· Redundant, hot-swappable power supplies and fans
· In-Service Software Upgrades (ISSU)
· Multi-Chassis Trunking (MCT) for core failover with load-balancing
· Hitless stack insertion and removal
Market-leading stacking scalability
· Up to 12 switches per stack
· Up to 10 km using standard optics or cables
· Up to 8x 40/100GbE standard QSFP28 stacking ports
Advanced L3 routing delivers design flexibility
· IPv4 and IPv6
· BGP, OSPF, VRRP, PIM, PBR, VRF
Data center leaf/spine deployment with 25 & 100 GbE
· Up to 48x 10/25GbE port per leaf switch for server connectivity
· Up to 48x 10GBASE-T copper ports per leaf switch for server connectivity
· Up to 32x 40/100 GbE ports per spine switch
Security and data privacy
· MACsec 128-bit and 256-bit data encryption ensures compliance and data confidentiality
Download tài liệu tại đây: RUCKUS ICX 7850 Switches
