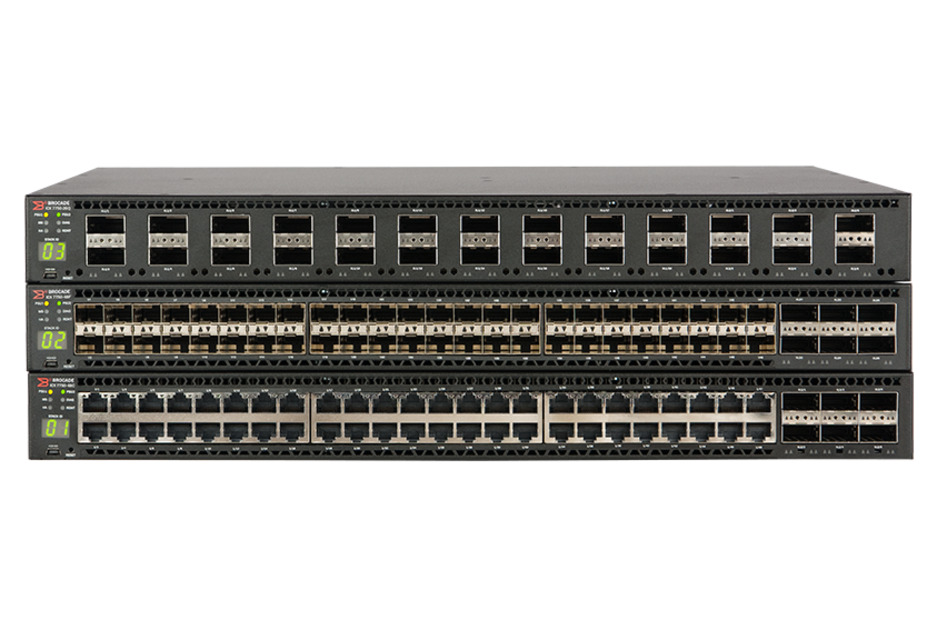

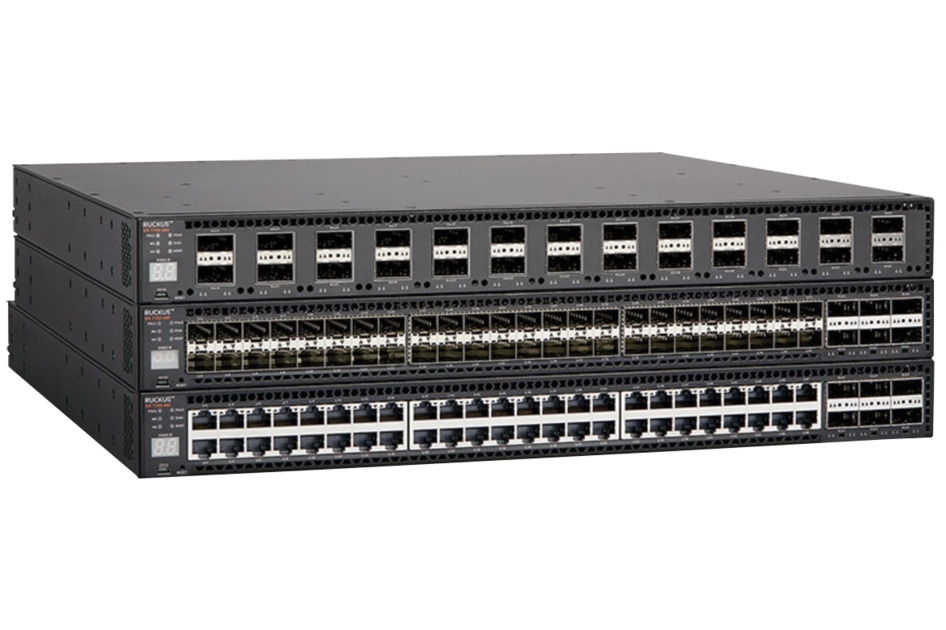

RUCKUS ICX 7750 Switches
-
The ICX 7750 provides the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch. The switch delivers faster network response time via wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice or video streaming and Virtual Desktop Infrastructure. Up to 12 ICX 7750 switches can be stacked together to provide terabytes of aggregated stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks.
RUCKUS ICX 7750 Switches Features
The RUCKUS ICX 7750 delivers chassis performance in the network’s aggregation and core switching operations. The switch’s premier speed and reliability in a flexible scale-out design enables a small deployment to add capacity as needs grow and deliver mission critical application services with complete confidence.The ICX 7750 provides the capabilities of a chassis with the flexibility and cost-effectiveness of a stackable switch. The switch delivers faster network response time via wire-speed, non-blocking performance across all ports to support latency-sensitive applications such as real-time voice or video streaming and Virtual Desktop Infrastructure. Up to 12 ICX 7750 switches can be stacked together to provide terabytes of aggregated stacking bandwidth with full redundancy, eliminating inter-switch bottlenecks.
- Industry-leading 10/40 Gbps Ethernet port density and flexibility
- Up to 32x40 GbE or 96x10 GbE ports per unit
- Up to 5.76 Tbps of aggregated stacking bandwidth with full redundancy
- Up to 10km between stacked switches
- 6 full-duplex 40 Gbps stacking ports per switch
- Software updates without downtime with In-Service Software Upgrades (ISSU)
- Instantaneous hitless failover

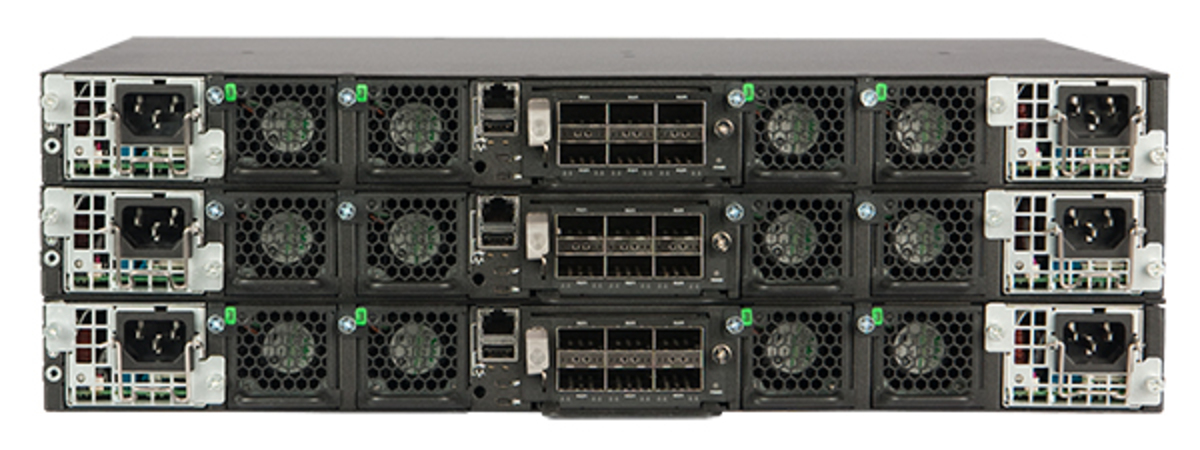

- Redundant power supplies with hot-swappable, and load-sharing capabilities
- Flexible distributed chassis stacking architecture
- Start small and add capacity via stacking as needs grow
- 1U form factor saves rack space and power in wiring closets
- Works seamlessly with RUCKUS Wi-Fi access points
- With RUCKUS SmartZone support delivers unified wired & wireless management
Performance of Chassis in 1RU
· Deployed as aggregation or core solution
· Wire-speed, non-blocking performance
Industry-Leading 10/40 GbE Port Density
· 32 ports of 40 GbE or 96 ports of 10 GbE
· 2.56 Tbps switching capacity
Increased Reliability and Availability Through Redundancy
· Load-sharing, hot-swappable power supplies
· Ruckus MCT eliminates single point of failure
Advanced L3 Routing Delivers Network Design Flexibility
· OSPF, VRRP, PIM, PBR, BGP, VRRP, VRF
Market-Leading Stacking Scalability
· Up to 12 switches per stack
· Up to 10 km using standard optics or cables
Campus Fabric Reduces Cost of Operations,
Increases Flexibility
· Delivers the benefits of a chassis with the flexibility
of stackables
· Scales to over 1800 ports
Energy Efficient Use of Power and Cooling Lowers
Opex Costs
· Deployed as aggregation or core solution
· Wire-speed, non-blocking performance
Industry-Leading 10/40 GbE Port Density
· 32 ports of 40 GbE or 96 ports of 10 GbE
· 2.56 Tbps switching capacity
Increased Reliability and Availability Through Redundancy
· Load-sharing, hot-swappable power supplies
· Ruckus MCT eliminates single point of failure
Advanced L3 Routing Delivers Network Design Flexibility
· OSPF, VRRP, PIM, PBR, BGP, VRRP, VRF
Market-Leading Stacking Scalability
· Up to 12 switches per stack
· Up to 10 km using standard optics or cables
Campus Fabric Reduces Cost of Operations,
Increases Flexibility
· Delivers the benefits of a chassis with the flexibility
of stackables
· Scales to over 1800 ports
Energy Efficient Use of Power and Cooling Lowers
Opex Costs
Enterprise-Class Features Across Ruckus ICX Switches
The Ruckus ICX switch family delivers the enterprise class features for flexibility, scalability and simplified management.
· Ruckus Campus Fabric technology delivers unmatched flexibility, scalability and simplified management for campus network
deployments. Incorporating all of the ICX 7000 switch families with up to 1800 ports in a single logical domain, Campus Fabric
allows customers the benefits of a traditional chassis, with the flexibility of stackable switches at a dramatically reduced Total Cost
of Ownership (TCO).
· Advanced stacking goes beyond traditional stacking with capabilities that take flexibility, ease of management and cost
effectiveness to then next level, including:
– Stacking on standard Ethernet ports
– Long-distance stacking
– No hardware module required for stacking
– In Service Software Upgrade (ISSU) to minimize downtime
– Superior scalability with the industry-leading number of switches per stack
– Stacking at the access, aggregation and core layers
· Enterprise-Class Availability to improve resiliency and minimize downtime, including:
– Hitless stack failover
– Hot-insertion/removal of stack members
– Redundant power supplies
– In Service Software Upgrades for switch stacks
· Ruckus offers a broad range of unified management solutions for organizations of all types and sizes:
– Ruckus SmartZone network controllers deliver the scale, flexibility to support the most sophisticated deployment scenarios.
– Ruckus Unleashed is a simple-to-setup, easy-to-run management solution in a package designed for small businesses.
· On-boarding and security policies across ICX switches and wireless networks.
· OpenFlow 1.3 protocol support in hybrid mode allows user to deploy traditional Layer 2/3 forwarding with OpenFlow on the same
port for Software Defined Network (SDN) enabled programmatic control of the network
· Open Standards based management, monitoring and authentication
– sFlow-based network monitoring to help analyze traffic statistics and trends on every link and overcome unexpected network
congestion
– Open-standards management includes Command Line Interface (CLI), Secure Shell (SSHv2), Secure Copy (SCP), and SNMPv3
– Support for Access Controller Access Control System (TACACS/TACACS+) and RADIUS authentication helps ensure secure
operator access
– LLDP and LLDP-MED protocol support for configuring, discovering, and managing network infrastructure such as QoS, security
policies, VLAN assignments, PoE power levels, and service priorities
The Ruckus ICX switch family delivers the enterprise class features for flexibility, scalability and simplified management.
· Ruckus Campus Fabric technology delivers unmatched flexibility, scalability and simplified management for campus network
deployments. Incorporating all of the ICX 7000 switch families with up to 1800 ports in a single logical domain, Campus Fabric
allows customers the benefits of a traditional chassis, with the flexibility of stackable switches at a dramatically reduced Total Cost
of Ownership (TCO).
· Advanced stacking goes beyond traditional stacking with capabilities that take flexibility, ease of management and cost
effectiveness to then next level, including:
– Stacking on standard Ethernet ports
– Long-distance stacking
– No hardware module required for stacking
– In Service Software Upgrade (ISSU) to minimize downtime
– Superior scalability with the industry-leading number of switches per stack
– Stacking at the access, aggregation and core layers
· Enterprise-Class Availability to improve resiliency and minimize downtime, including:
– Hitless stack failover
– Hot-insertion/removal of stack members
– Redundant power supplies
– In Service Software Upgrades for switch stacks
· Ruckus offers a broad range of unified management solutions for organizations of all types and sizes:
– Ruckus SmartZone network controllers deliver the scale, flexibility to support the most sophisticated deployment scenarios.
– Ruckus Unleashed is a simple-to-setup, easy-to-run management solution in a package designed for small businesses.
· On-boarding and security policies across ICX switches and wireless networks.
· OpenFlow 1.3 protocol support in hybrid mode allows user to deploy traditional Layer 2/3 forwarding with OpenFlow on the same
port for Software Defined Network (SDN) enabled programmatic control of the network
· Open Standards based management, monitoring and authentication
– sFlow-based network monitoring to help analyze traffic statistics and trends on every link and overcome unexpected network
congestion
– Open-standards management includes Command Line Interface (CLI), Secure Shell (SSHv2), Secure Copy (SCP), and SNMPv3
– Support for Access Controller Access Control System (TACACS/TACACS+) and RADIUS authentication helps ensure secure
operator access
– LLDP and LLDP-MED protocol support for configuring, discovering, and managing network infrastructure such as QoS, security
policies, VLAN assignments, PoE power levels, and service priorities
