MIG-CL9600 Video Wall Controller

MIG-CL9600 Video Wall Controller
Designed for Fine Pixel Pitch LED Mosaic

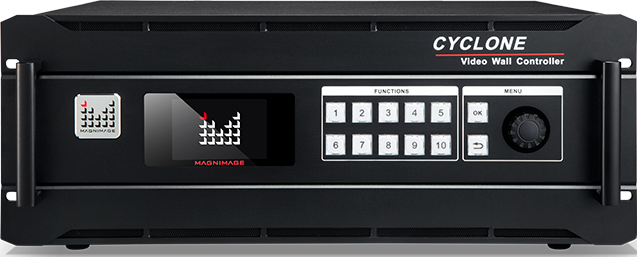

Panel Presentation

1/ LCD Screen

2/ Function Keys

3/ Menu Operating Area

1/ DVI Outputs
2/ DVl Inputs
3/ VGA Inputs
4/ HDMl Inputs
5/ HDMl2.0、DP1.2 Inputs
6/ DP1.1 Inputs
7/ SDI Inputs
8/ IP Monitoring
9/ Frame Synchronization for Input/Output
10 RS 232 Control Port
11/ USB Upgrade Port
12/ Network Control Port

4K×2K 4:4:4

MIG-CL9600 video wall controller has 2 kinds of 4K input port: HDMI and DP, each of them support 4K*2K/60 Hz
input, the picture/video will be higher definition, much more real color

Seamless Mosaic & Splitting for High Resolution LED Screen

Connect the machine’s output to sending cards, with customized output resolution function, easily to display a
super large resolution to LED screen. Single MIG-CL9604 support up to 24 screens of splicing, perfect sync, same
frame, without tear. DP, HDMI input support 4K*2K@60 Hz, pixel to pixel high resolution display easily

No Frame Loss

When playing a 1080P fast video, ordinary video wall
controller will have 30 frames less

Using MIG-CL9600 video wall controller, 60 full frames
play smoothly

No Image Tearing

The output effect of ordinary video wall controller when
playing a fast video

The output effect of MIG-CL9600 when playing
the some video

Real Time IP Monitoring

Connect the machine Ethernet port, LAN port and upper computer into the same LAN(router), then all input and
output source’s pictures can be real time monitored, in the controlling software

Standard Module Design

It is module designed for both input and output
You can choose the configuration according to your demands.

6 Independent Layer Output from 1 DVI

Single DVI output port support 6 independent layers and 1 background HD picture at the same time; the layer’s
size, position, top or bottom can be customized; inbuilt input video matrix,
any source can be displayed at any layer

Edge Blending Mosaic for Projectors

Single machine support up to 24 projectors working together; with projector edge blending splicing function, the
blending area’s size, position and transparency can be customized

Chassis specification

Chasis	4U	14U
Input channels	24	72
Output channels	24	72
Power voltage	110~240V
Power frequency	50/60Hz
Operation temperature	0~45℃
Chasis N.W.(KG)	11.0	41.0
Overall power consumption(W)	650	1900
Dimension(mm)	482.6×371×177	482.6×570×645

Input card

Input card type	Port type	Port quantity	Resolution
VGA	RGBHV	4	1920×1080/60Hz
DVI	DVI-D	4	1920×1080/60Hz & EDID management
HDMI	HDMI1.3	4	1920×1080/60Hz
2SDI+2VGA	3G SDI,RGBHV	4	1920×1080/60Hz
SDI	3G SDI	4	1080i/60Hz,1080P/60Hz
DP	DP1.1	2	3840×2160/30Hz
IP	H.264	2	1920×1080/60Hz
2SDI+2DVI	3G SDI,DVI-D	2×2	1920×1080/60Hz
HDMI(4K)+DP(4K)	HDMI 2.0,DP 1.2	1+1	3840×2160/30Hz & EDID management

Output card

Output card type	Port type	Port quantity	Resolution
DVI	DVI-D(4 layers)	4	1920×1080/60Hz，2560×816/60Hz，1440×1440/60Hz& EDID management
DVI	DVI-D(6 layers)	4	1920×1080/60Hz，2560×816/60Hz，1440×1440/60Hz& EDID management
DVI	DVI-D(12 layers)	2×2	1920×1080/60Hz，2560×816/60Hz，1440×1440/60Hz& EDID management
SDI	3G SDI(4 layers)	4	1080i/60Hz,1080P/60Hz
IP	H.264	1	IP Monitoring
