RUCKUS® ICX 8200
-

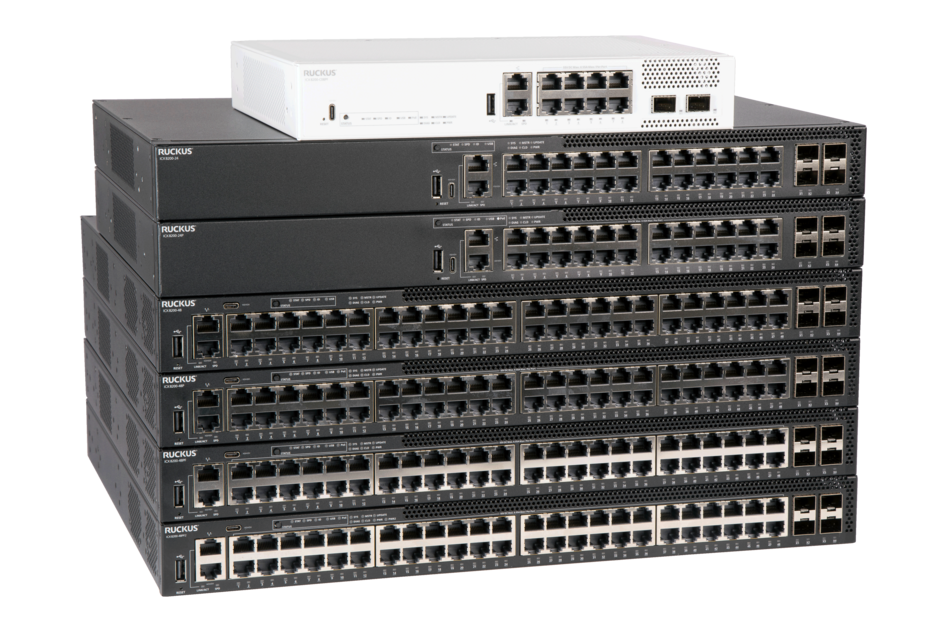

Ruckus ICX 8200 Series
is a next-generation, stackable access switch line engineered for wireless-first and IoT campus networks. It delivers advanced enterprise-class features such as multi-gigabit edge ports, PoE++ (802.3bt), 25 GbE uplinks/stacking, and full Layer 2/Layer 3 (IPv4/IPv6) capabilities. With support for hot-swappable power supplies and fans in some models, high stacking density (up to 12 switches per stack), and a modern architecture optimized for future growth, the ICX 8200 is ideal for scalable, high-performance networks.
RUCKUS ICX 8200 Switches Features
The RUCKUS ICX 8200 Switch series is specifically designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost- effectiveness, and “pay as you grow” scalability of stackable solution.
- Maximum flexibility and connectivity options
Gigabit, Multigigabit edge ports and Fiber to the Room, optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports. 1/2.5/5/10 Gbps Copper ports, 1G SFP and 10G SFP+ fiber ports
- Power next generation APs and PoE devices
PoE+ 802.3at, 30W per port on all ports. PoE++ 802.3bt, 60/90W on multigigabit ports and up to 1480W PoE budget with two power supplies
- 25 GbE uplinks/stacking offers maximum performance and future-proofing.
Eliminate network bottlenecks with up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking
- Advanced L3 routing delivers network design flexibility
IPv4 and IPv6 L3 routing. Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR - Enhanced availability
Redundant, load-sharing hot-swap power supplies and fans on specific models - Services and Support Included
3 years of remote TAC support included with every ICX 8200 model and Limited lifetime warranty - Enhanced Security and data privacy
VXLAN* support for advanced network segmentation and data confidentiality

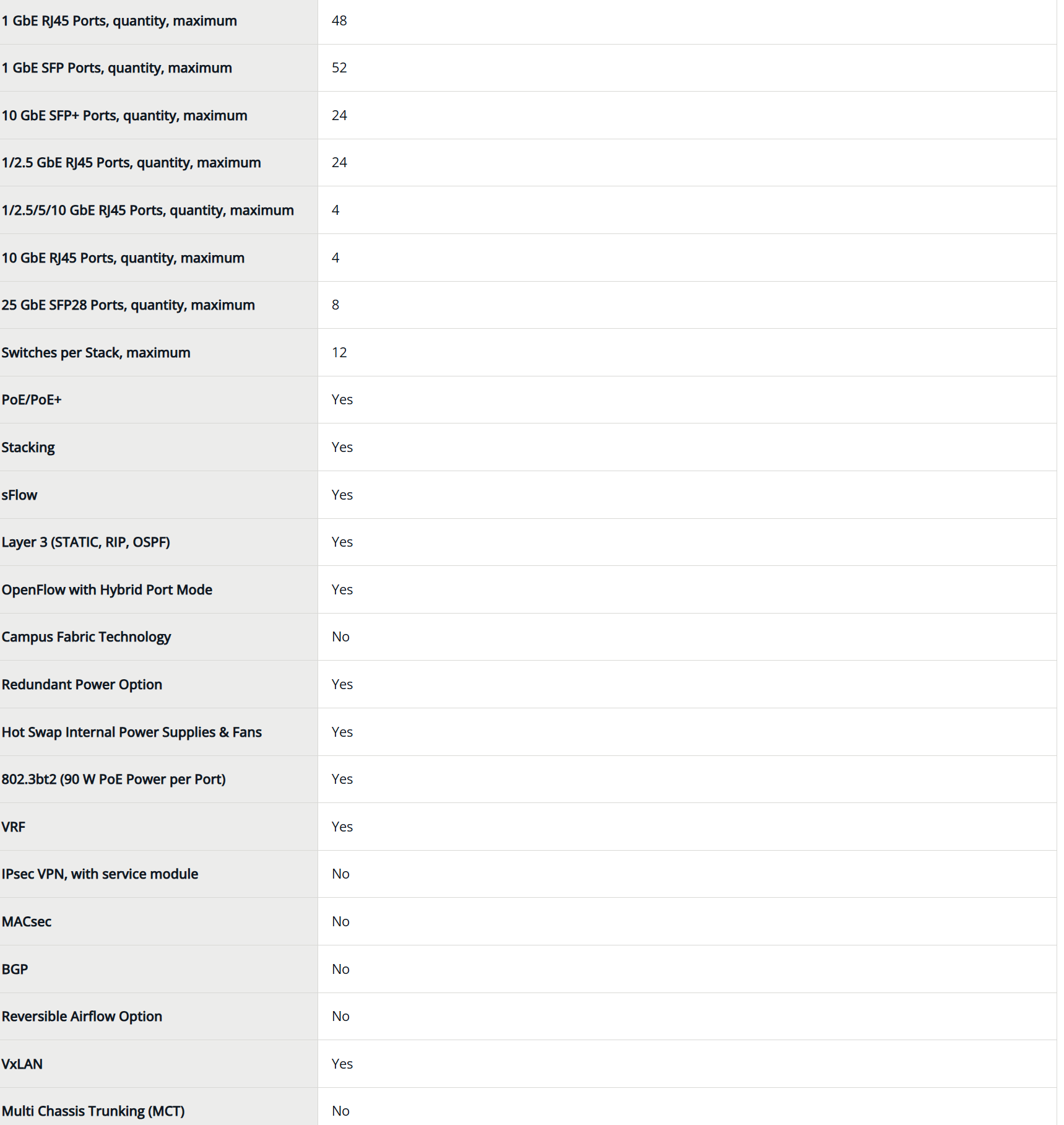

General Specifications
